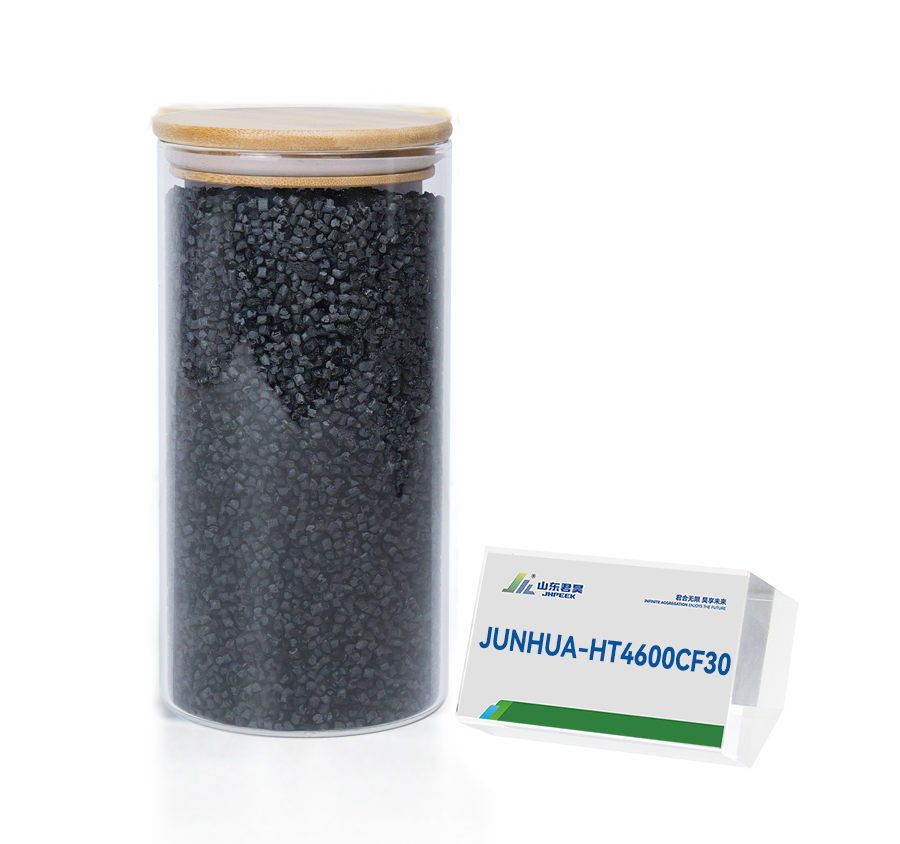

JUNHUA® HT4600CF30

  • JUNHUA® HT4600CF30

  • Product Details JUNHUA- HT4600CF30 is a high-strength polyaryletherketone alloy material, which combines 30% high-strength carbon fiber with excellent performance polyaryletherketone material. The product has the characteristics of high strength, high temperature resistance, low linear expansion coefficient, etc. It can be widely used in aerospace, automotive electronics, petrochemical, instrument analysis and other fields. Characteristics and advantages […]
  • Telephone：18136591771 / 0537-5135559
  • Mail： chinaPEEK@chinaPEEK.com
  • Contact Now
  • Product Details
        • Product Details
          • JUNHUA- HT4600CF30 is a high-strength polyaryletherketone alloy material, which combines 30% high-strength carbon fiber with excellent performance polyaryletherketone material. The product has the characteristics of high strength, high temperature resistance, low linear expansion coefficient, etc. It can be widely used in aerospace, automotive electronics, petrochemical, instrument analysis and other fields.

            Characteristics and advantages High strength, high purity, light weight, impact resistance, high temperature resistance, corrosion resistance
            Application Sheet, rod, pipe
            RoHS Appearance Black
            Form Particles
            Processing Method Injection Extrusion
            =”padding: 5px;”>Storage Keep away from light and dry
        • Mechanical properties

          • =”text-align: center;” border=”1″ width=”100%” cellspacing=”0″ cellpadding=”5″ align=”center”>

            Test Items Test Standard or Instrument Unit Typical Value
            Tensile Strength(23℃) ISO 527-2/1B/50 MPa 210
            Tensile Strength (150℃) ISO 527-2/1B/50 MPa 130
            Tensile Modulus (23℃) ISO 527-2/1B/51 GPa 21
            Tensile Elongation (23℃) ISO 527-2/1B/50 % 3
            Flexural strength (23℃) ISO 178 MPa 300
            Flexural strength (150℃) ISO 178 MPa 200
            Flexural modulus (23℃) ISO 178 GPa 12
            Impact strength of simple supported beam (unnotched) ISO 179/U KJ/m2 25
            Test Item Standard Unit Value
            Melting point DSC ℃ 373
            Heat deformation temperature ISO 75-1/-2 ℃ 365
            Coefficient of thermal expansion ASTM D696 ppm K-1 20
            Flammability grade UL 94 / V-0
            Thermal conductivity ISO 22007 W/（m·K） 0.95
            Surface resistance IEC 61340 Ω 105



        • Processing

          • Injection processing



            Item Typical Value Unit
            Drying Temperature 150-160 ℃
            Drying Time 4-5 h
            Melt Temperature 370-410 ℃
            Mold Temperature 160-260 ℃



            Extrusion Processing



            Item Typical value Unit
            Drying Temperature 150-160 ℃
            Drying Time 4-5 h
            Melt Temperature 370-400 ℃
        • Other properties

          • Test Items Test Standard or Instrument Unit Typical Value
            Color – Black
            True Density ISO 1183 g/cm3 1.41
            Water absorption (25℃.24Hrs) ISO 62 % 0.5
            Molding shrinkage Parallel to flow direction % 0.6
            Rockwell hardness GB/T 3398.2 HRE 80
            Coefficient of friction ASTM D3702 μ 0.30-0.45
            Melt index ISO 1133 g/10min 2

            Note: 1. Typical values are injection molding indicators. If necessary, please contact our technical department for more detailed technical indicators! 2. This performance indicator cannot be used as a material acceptance standard.
