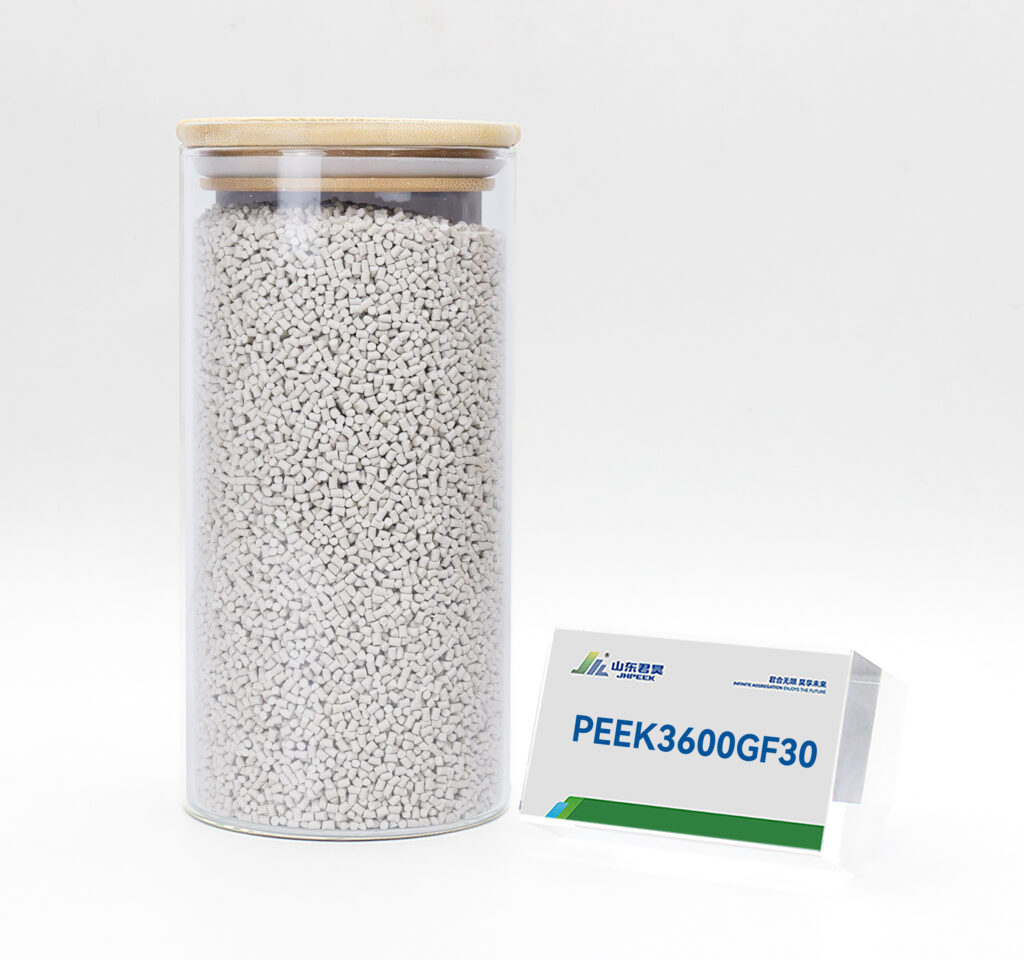

PEEK3600GF30 Particles

As an advanced engineering plastic, PEEK plays an important role in weight reduction, effectively extending the service life of components, and optimizing component utilization due to its good machinability, flame retardancy, non-toxicity, wear resistance, and corrosion resistance. 30% glass fiber + 70% PEEK, glass fiber plays a reinforcing role in the component, and its non-conductive characteristics make it suitable for use in materials with high insulation requirements and strong rigidity. PEEK3600GF30 is a grade of particles with high fluidity, which can be used for injection molding to produce thin-walled products.

Item	Test Standard or Instrument	Unit	PEEK3600GF30
			PEEK+70%Glass fiber
Tensile strength(23℃)	ISO527-2/1B/50	MPa	180
Tensile modulus(23℃	ISO527-2/1B/51	GPa	12.5
Tensile elongation(23℃)	ISO527-2/1B/50	%	2.5
Bending strength(23℃)	ISO 178	MPa	273
Bending modulus(23℃)	ISO 178	GPa	11.5
Compressive strength(23℃)	ISO 604	MPa	247
Charpy tched impact strength( no gap)	ISO 179/U	KJ/m2	50
Lzod impact strength	ISO 180/A	KJ/m2	9

1、If you need other parameter, please contact us!

2、This performance index cannot be used as acceptance criteria.





Item	Test Standard or Instrument	Unit	PEEK3600GF30
			PEEK+30%Glass fiber
Melting point	DSC	℃	343
Distortion temperature	ISO 75-1/-2	℃	330
Continuous using temperature	UL 74685	℃	260
Coefficient of thermal expansion	ASTM D696	ppm K -1	18
Flammable level	UL 94	/	V-0
Thermal conductivity	ISO 22007	W/（m·K）	0.30

1、If you need other parameter, please contact us!

2、This performance index cannot be used as acceptance criteria.



Item	Test Standard or Instrument	Unit	PEEK3600GF30
			PEEK+30%Glass fiber
Dielectric strength	IEC 60243-1	KV/mm	17
Dielectric constant	IEC 60250	–	3.3
Surface resistance	IEC 61340	Oh	1013
Lossy medium	IEC 60251	–	0.005

1、If you need other parameter, please contact us!

2、This performance index cannot be used as acceptance criteria.



Item	Test Standard or Instrument	Unit	PEEK3600GF30
			PEEK+30%Glass fiber
Color	–		Natural
Density	ISO 1183	g/cm 3	1.5
Water Abs. (25℃.24Hrs)	ISO 62	%	0.05
Mould shrinking percentage	3mm,170℃, Flow direction	%	0.3
	Perpendicular to flow direction	%	0.8
Simeom Denis Poisson	ISO 527-2		0.35
Rockwell hardness	GB/T 3398.2	HRR	120
Friction coefficient	ASTM D3702	m	0.35-0.4
Melt flow index	ISO1133	g/10min	14

1、If you need other parameter, please contact us!

2、This performance index cannot be used as acceptance criteria.



• FDA approved
• Low noise
• High strength
• Self-lubrication
• Impact resistance
• High purity
• Wear resistance
• High temperature resistance
• Lightweight
• Corrosion resistance
• Hydrolysis resistance
• Good biocompatibility
