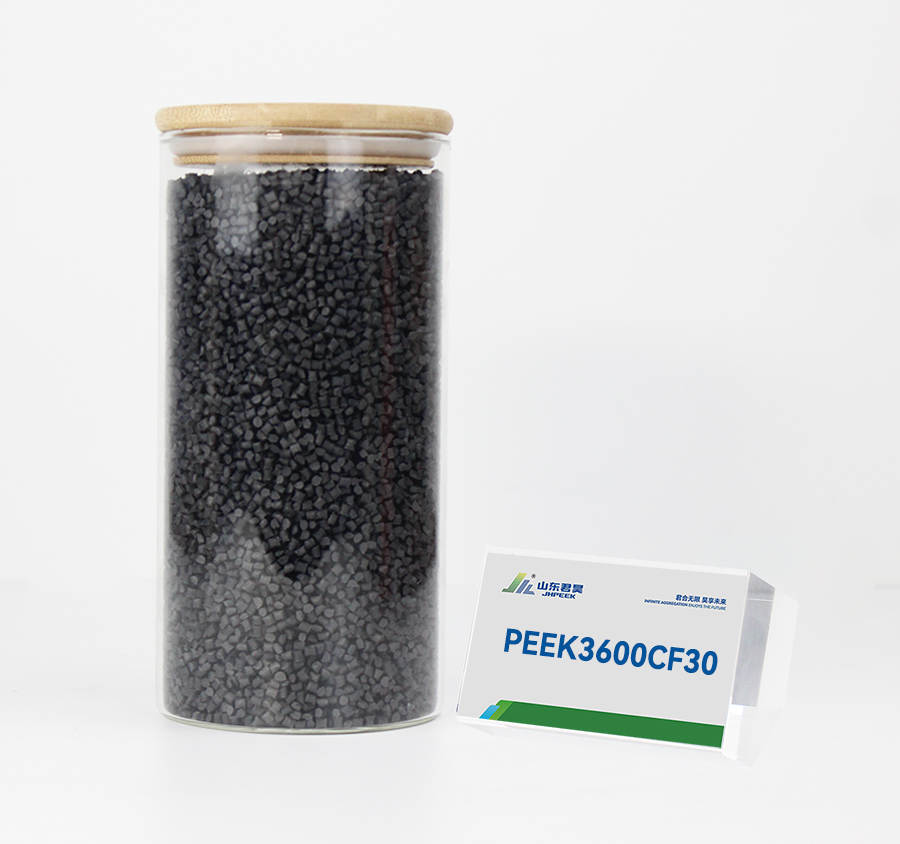

PEEK3600CF30 particles
  • PEEK3600CF30 particles

  • PEEK3600CF30 (30% carbon fiber + 70% PEEK), the addition of carbon fiber can greatly improve the mechanical properties of the material, and the conductive properties of carbon fiber itself also make the material conductive. The addition of carbon fiber can also improve the wear resistance of the material. PEEK3600CF30 particles are high-flowability grade particles and […]
  • Telephone:18136591771 / 0537-5135559
  • Mail: chinaPEEK@chinaPEEK.com
  • Contact Now
  • Product Details
    • PEEK3600CF30 (30% carbon fiber + 70% PEEK), the addition of carbon fiber can greatly improve the mechanical properties of the material, and the conductive properties of carbon fiber itself also make the material conductive. The addition of carbon fiber can also improve the wear resistance of the material. PEEK3600CF30 particles are high-flowability grade particles and can be used for injection molding to produce thin-walled products.

  • Mechanical properties
    • Item Test Standard or Instrument Unit PEEK3600CF30
      PEEK+30%Carbon fiber
      Tensile strength(23℃) ISO527-2/1B/50 MPa 250
      Tensile modulus(23℃ ISO527-2/1B/51 GPa 23.0
      Tensile elongation(23℃) ISO527-2/1B/50 % 1.5
      Bending strength(23℃) ISO 178 MPa 350
      Bending modulus(23℃) ISO 178 GPa 18
      Compressive strength(23℃) ISO 604 MPa 300
      Charpy tched impact strength( no gap) ISO 179/U KJ/m2 38
      Lzod impact strength ISO 180/A KJ/m2 8

      1、If you need other parameter, please contact us!

      2、This performance index cannot be used as acceptance criteria.

  • Thermal properties
    • Item Test Standard or Instrument Unit PEEK3600CF30
      PEEK+30%Carbon fiber
      Melting point DSC 343
      Distortion temperature ISO 75-1/-2 330
      Continuous using temperature UL 74685 260
      Coefficient of thermal expansion ASTM D696 ppm K-1 19
      Flammable level UL 94 / V-0
      Thermal conductivity ISO 22007 W/(m·K) 0.95

      1、If you need other parameter, please contact us!

      2、This performance index cannot be used as acceptance criteria.



  • Electrical properties
    • Item Test Standard or Instrument Unit PEEK3600CF30
      PEEK+30%Carbon fiber
      Dielectric strength IEC 60243-1 KV/mm
      Dielectric constant IEC 60250
      Surface Resistance IEC 61340 Oh 105
      Lossy medium IEC 60251

      1、If you need other parameter, please contact us!

      2、This performance index cannot be used as acceptance criteria.



  • Other features
    • Item Test Standard or Instrument Unit PEEK3600CF30
      PEEK+30%Carbon fiber
      Color Black
      Density ISO 1183 g/cm 3 1.4
      Water Abs. (25℃.24Hrs) ISO 62 % 0.05
      Mould shrinking percentage 3mm,170℃, Flow direction % 0.3
      Perpendicular to flow direction % 0.8
      Simeom Denis Poisson ISO 527-2 0.35
      Rockwell hardness GB/T 3398.2 HRR 122
      Friction coefficient ASTM D3702 m 0.28-0.4
      Melt flow index ISO1133 g/10min 14

      1、If you need other parameter, please contact us!

      2、This performance index cannot be used as acceptance criteria.



  • Main performance
    • performance.webp
