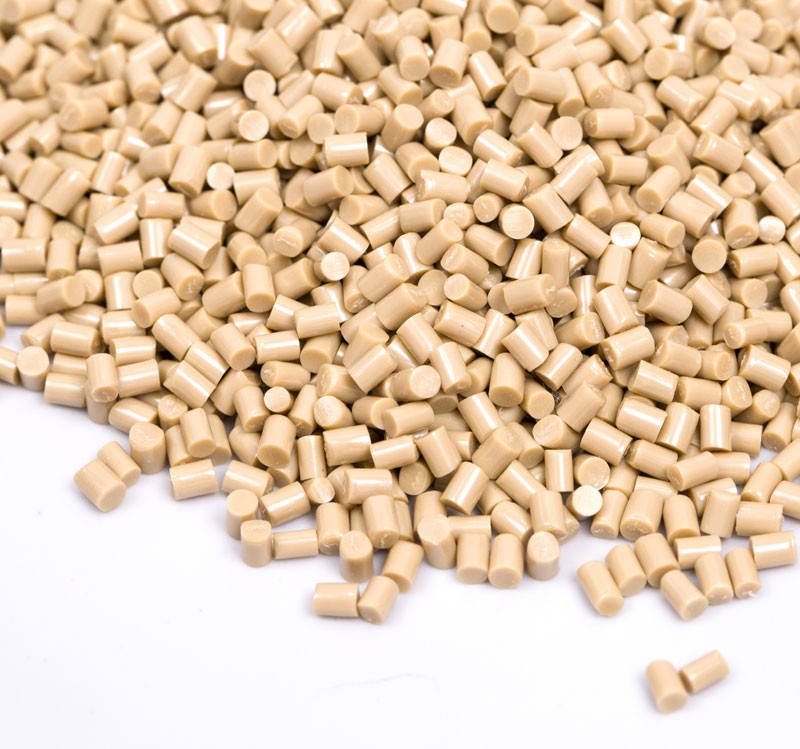

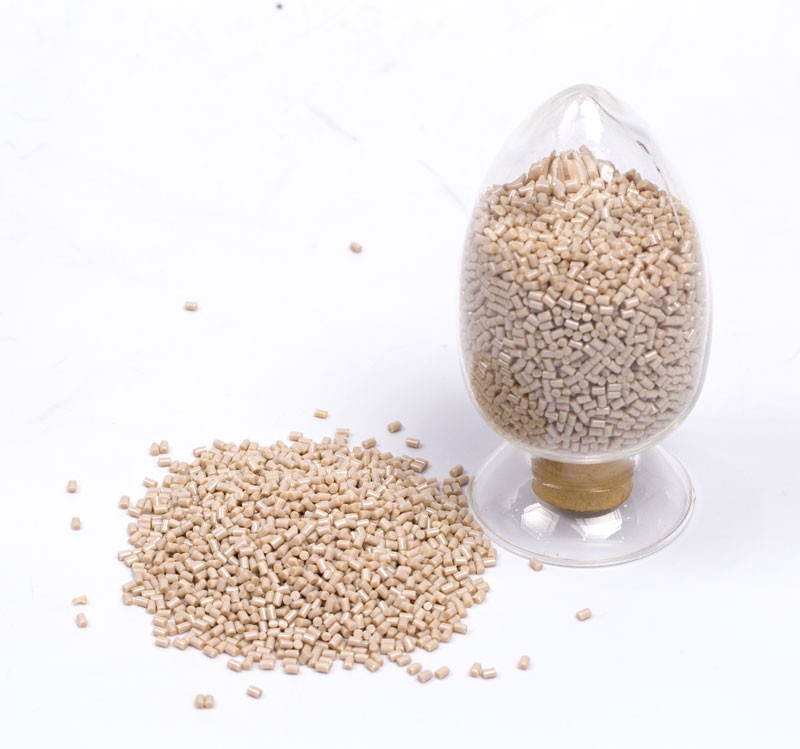

PEEK3600G particles

PEEK has excellent comprehensive performance due to the large number of benzene ring structures in its molecules. PEEK (polyetheretherketone) resin is a high-performance special thermoplastic material and one of the important varieties of commercial polyaryletherketone resins. At present, polyetheretherketone is widely used in petroleum, food processing, automobile and aerospace fields for its excellent electrical properties, mechanical properties, high temperature resistance and corrosion resistance. PEEK3600G is a grade of particles with a high melt flow rate. Its purity can reach more than 99%, and it can be produced and processed by injection molding and extrusion. It can be used to produce thin-walled products by injection molding. Relying on the previous experience accumulated in the PEEK industry, the company has entered the polymerization production of PEEK resin, providing more choices and stronger guarantees for domestic PEEK parts and profiles, and creating advantageous conditions for the development of domestic PEEK. At the same time, through the research and development, production and feedback of customers on profiles and parts, it will also promote the improvement of Junhao's raw material resin polymerization.

Item	Test Standard or Instrument	Unit	PEEK3600G
			100%PEEK
Tensile strength(23℃)	ISO527-2/1B/50	MPa	97
Tensile modulus(23℃	ISO527-2/1B/51	GPa	4.1
Tensile elongation(23℃)	ISO527-2/1B/50	%	15
Bending strength(23℃)	ISO 178	MPa	175
Bending modulus(23℃)	ISO 178	GPa	4.3
Compressive strength(23℃)	ISO 604	MPa	125
Charpy tched impact strength( no gap)	ISO 179/U	KJ/m2	140（No break）
Lzod impact strength	ISO 180/A	KJ/m2	5

1、If you need other parameter, please contact us!

2、This performance index cannot be used as acceptance criteria.



Item	Test Standard or Instrument	Unit	PEEK3600G
			100%PEEK
Melting point	DSC	℃	343
Distortion temperature	ISO 75-1/-2	℃	157
Continuous using temperature	UL 74685	℃	260
Coefficient of thermal expansion	ASTM D696	ppm K -1	46
Flammable level	UL 94	/	V-0
Thermal conductivity	ISO 22007	W/（m·K）	0.28

1、If you need other parameter, please contact us!

2、This performance index cannot be used as acceptance criteria.



Item	Test Standard or Instrument	Unit	PEEK3600G
			100%PEEK
Dielectric strength	IEC 60243-1	KV/mm	24
Dielectric constant	IEC 60250	–	3.2
Surface resistance	IEC61340	Ω	1013
Lossy medium	IEC 60251	–	0.004

1、If you need other parameter, please contact us!

2、This performance index cannot be used as acceptance criteria.



Item	Test Standard or Instrument	Unit	PEEK3600G
			100%PEEK
Color	–		Natural
Density	ISO 1183	g/cm3	1.3±0.01
Water Abs. (25℃.24Hrs)	ISO 62	%	0.05
Mould shrinking percentage	3mm,170℃, Flow direction	%	1.0
	Perpendicular to flow direction	%	1.3
Simeom Denis Poisson	ISO 527-2		0.4
Rockwell hardness	GB/T 3398.2	HRR	118
Friction coefficient	ASTM D3702	μ	0.30-0.35
Melt flow index	ISO1133	g/10min	40

1、If you need other parameter, please contact us!

2、This performance index cannot be used as acceptance criteria.



• FDA approved
• Low noise
• High strength
• Self-lubrication
• Impact resistance
• High purity
• Wear resistance
• High temperature resistance
• Lightweight
• Corrosion resistance
• Hydrolysis resistance
• Good biocompatibility
