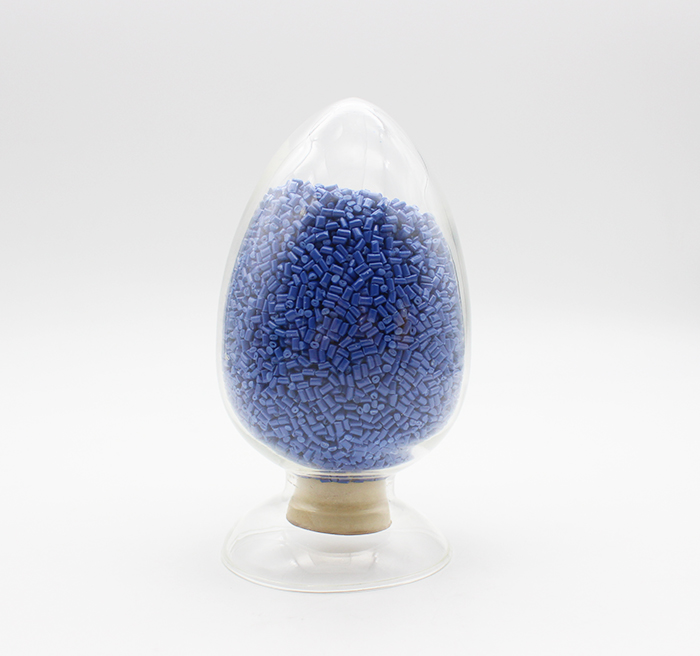

PEEK5600BL Particles
  • PEEK5600BL Particles

  • PEEK has excellent comprehensive performance due to the large number of benzene ring structures in its molecules. PEEK (polyetheretherketone) resin is a high-performance special thermoplastic material and one of the important varieties of commercial polyaryletherketone resins. At present, polyetheretherketone is widely used in petroleum, food processing, automobile, aerospace and other fields due to its excellent […]
  • Telephone:18136591771 / 0537-5135559
  • Mail: chinaPEEK@chinaPEEK.com
  • Contact Now
  • Product Details
    • PEEK has excellent comprehensive performance due to the large number of benzene ring structures in its molecules. PEEK (polyetheretherketone) resin is a high-performance special thermoplastic material and one of the important varieties of commercial polyaryletherketone resins. At present, polyetheretherketone is widely used in petroleum, food processing, automobile, aerospace and other fields due to its excellent electrical properties, mechanical properties, high temperature resistance, corrosion resistance, etc. PEEK5600BL is modified by PEEK5600G + blue masterbatch. The mechanical properties, thermal properties, electrical properties and other properties of the particles are the same as those of the same brand PEEK particles before adding masterbatch to change the color.

  • Mechanical properties
    • Item Test Standard or Instrument Unit PEEK5600BL
      Blue masterbatch modified PEEK
      Tensile strength(23℃) ISO527-2/1B/50 MPa 95
      Tensile modulus(23℃ ISO527-2/1B/51 GPa 4.0
      Tensile elongation(23℃) ISO527-2/1B/50 % 25
      Bending strength(23℃) ISO 178 MPa 169
      Bending modulus(23℃) ISO 178 GPa 4.2
      Compressive strength(23℃) ISO 604 MPa 125
      Charpy tched impact strength( no gap) ISO 179/U KJ/m2 150(No break)
      Lzod impact strength ISO 180/A KJ/m2 6

      1、If you need other parameter, please contact us!

      2、This performance index cannot be used as acceptance criteria.



  • Thermal properties
    • Item
      Test Standard or Instrument Unit
      PEEK5600BL
      Blue masterbatch modified PEEK
      Melting point DSC 343
      Distortion temperature ISO 75-1/-2 155
      Continuous using temperature UL 74685 260
      Coefficient of thermal expansion ASTM D696 ppm K-1 46
      Flammable level UL 94 / V-0
      Thermal conductivity ISO 22007 W/(m·K) 0.28

      1、If you need other parameter, please contact us!

      2、This performance index cannot be used as acceptance criteria.



  • Electrical properties
    • Item
      Test Standard or Instrument Unit
      PEEK5600BL
      Blue masterbatch modified PEEK
      Dielectric strength IEC 60243-1 KV/mm 24
      Dielectric constant IEC 60250 3.2
      Surface resistance

      Surface Resistance

      IEC 61340 Oh 1013
      Lossy medium IEC 60251 0.004

      1、If you need other parameter, please contact us!

      2、This performance index cannot be used as acceptance criteria.

  • Other features
    • Item Test Standard or Instrument Unit PEEK5600BL
      Blue masterbatch modified PEEK
      Color blue

      Blue

      Density ISO 1183 g/cm3 1.29±0.01
      Water Abs. (25℃.24Hrs) ISO 62 % 0.05
      Mould shrinking percentage 3mm,170℃, Flow direction % 1.0
      Perpendicular to flow direction % 1.3
      Simeom Denis Poisson ISO 527-2 0.4
      Rockwell hardness GB/T 3398.2 HRR 118
      Friction coefficient ASTM D3702 m 0.30-0.50
      Melt flow index ISO1133 g/10min 10

      1、If you need other parameter, please contact us!

      2、This performance index cannot be used as acceptance criteria.

  • Main performance
    • PEEK performance characteristics
