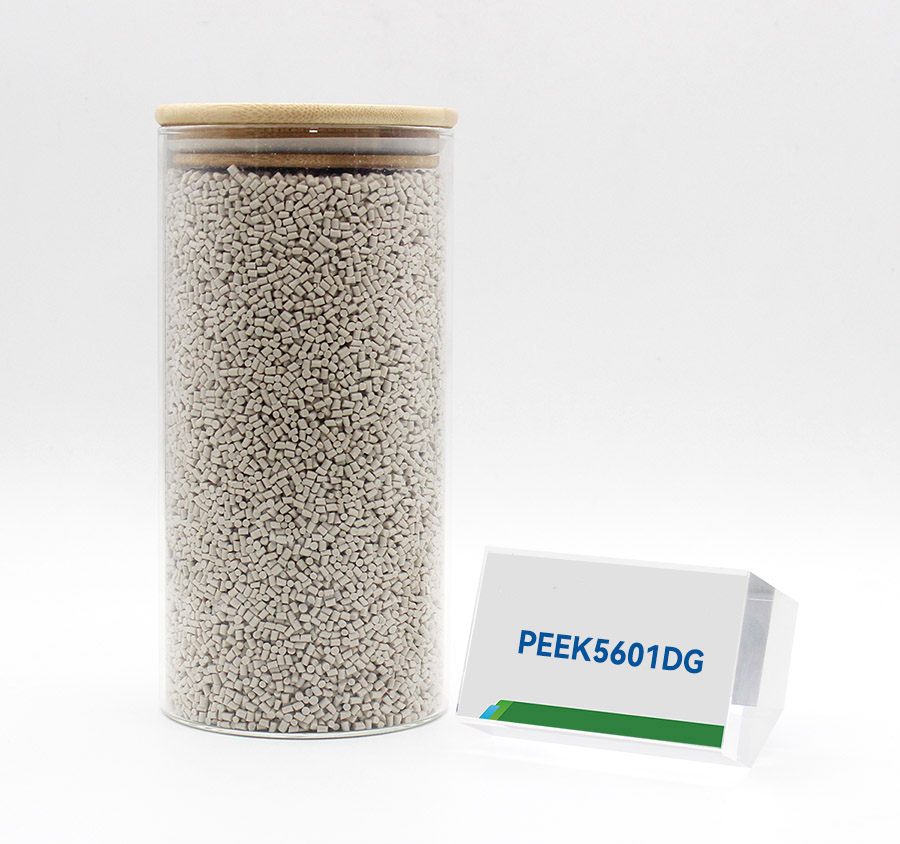

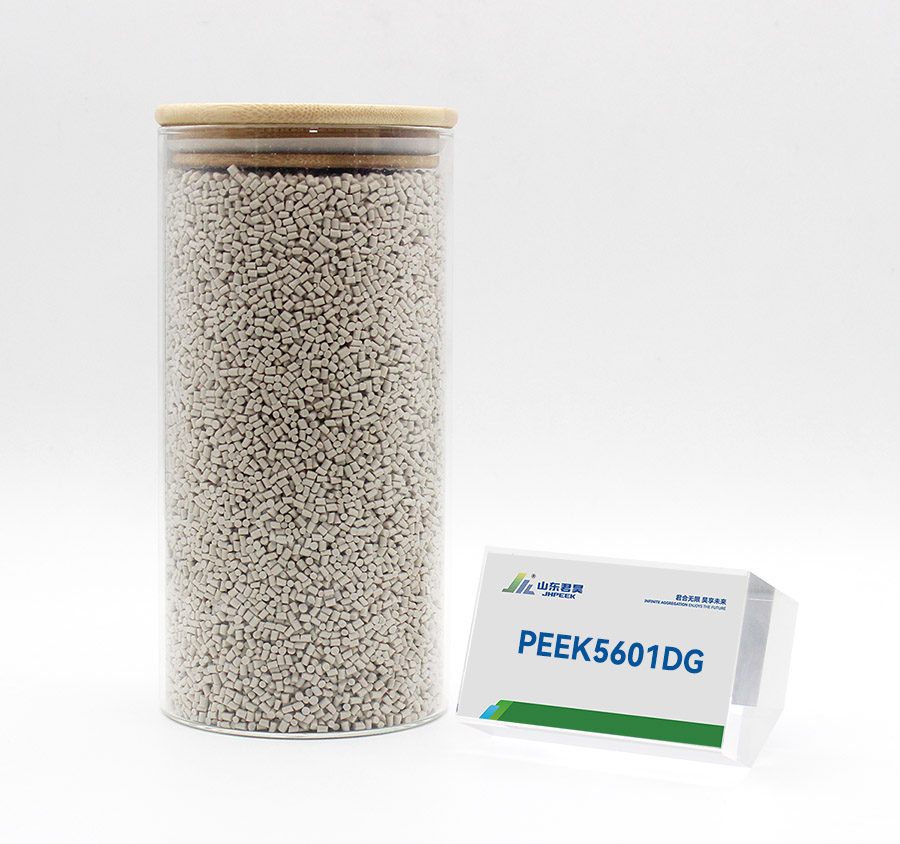

PEEK5601DG particles
  • PEEK5601DG particles

  • PEEK has excellent comprehensive performance because of the large number of benzene ring structures in its molecules. PEEK (polyetheretherketone) resin is a high-performance special thermoplastic material and one of the important varieties of commercial polyaryletherketone resins. At present, polyetheretherketone is widely used in petroleum, food processing, automobile, aerospace and other fields with its excellent electrical […]
  • Telephone:18136591771 / 0537-5135559
  • Mail: chinaPEEK@chinaPEEK.com
  • Contact Now
  • Product Details
    • PEEK has excellent comprehensive performance because of the large number of benzene ring structures in its molecules. PEEK (polyetheretherketone) resin is a high-performance special thermoplastic material and one of the important varieties of commercial polyaryletherketone resins. At present, polyetheretherketone is widely used in petroleum, food processing, automobile, aerospace and other fields with its excellent electrical properties, mechanical properties, high temperature resistance, corrosion resistance, etc. PEEK5601G-high purity PEEK particles are ultra-high purity grade particles, belonging to the grade particles of medium fluidity, which can be used for injection molding, extrusion production and processing. Its purity is higher than PEEK5600G, suitable for higher requirements such as analytical instrument parts.

  • Mechanical properties
    • Item Test Standard or Instrument Unit PEEK5601DG
      100%PEEK
      Tensile strength(23℃) ISO 527 MPa 95
      Tensile modulus(23℃ ISO 527 GPa 3.63
      Tensile elongation(23℃) ISO 527 % 30
      Bending strength(23℃) ISO 178 MPa 150
      Bending modulus(23℃) ISO 178 GPa 3.55
      Compressive strength(23℃) ISO 604 MPa 125
      Charpy tched impact strength( no gap) ISO 179/U KJ/m2 No break
      Lzod impact strength ISO 180/A KJ/m2 6.5

      1、If you need other parameter, please contact us!

      2、This performance index cannot be used as acceptance criteria.







  • Thermal properties
    • Item Test Standard or Instrument Unit PEEK5601DG
      High purity PEEK
      Melting point DSC 343
      Distortion temperature ISO 75-1/-2 152
      Continuous using temperature UL 74685 260
      Coefficient of thermal expansion ASTM D696 ppm K-1 45
      Flammable level UL 94 / V-0
      Thermal conductivity ISO 22007 W/(m·K) 0.29

      1、If you need other parameter, please contact us!

      2、This performance index cannot be used as acceptance criteria.



  • Electrical properties
    • Item Test Standard or Instrument Unit PEEK5601DG
      High purity PEEK
      Dielectric strength IEC 60243-1 KV/mm 23
      Dielectric constant IEC 60250 3.2
      Surface Resistance Oh 1016
      Lossy medium IEC 60251 0.003

      1、If you need other parameter, please contact us!

      2、This performance index cannot be used as acceptance criteria.



  • Other features
    • Item Test Standard or Instrument Unit PEEK5601DG
      High purity PEEK
      Color Natural
      Density ISO 1183 g/cm 3 1.288
      Water Abs. (25℃.24Hrs) ISO 62 % 0.07
      Mould shrinking percentage 3mm,170℃, Flow direction % 1
      Perpendicular to flow direction % 1.3
      Simeom Denis Poisson ISO 527-2 0.4
      Rockwell hardness GB/T 3398.2 HRR 119
      Friction coefficient ASTM D3702 m 0.30
      Melt flow index ISO1133 g/10min 10

      1、If you need other parameter, please contact us!

      2、This performance index cannot be used as acceptance criteria.



  • Main performance
    • PEEK performance advantages
