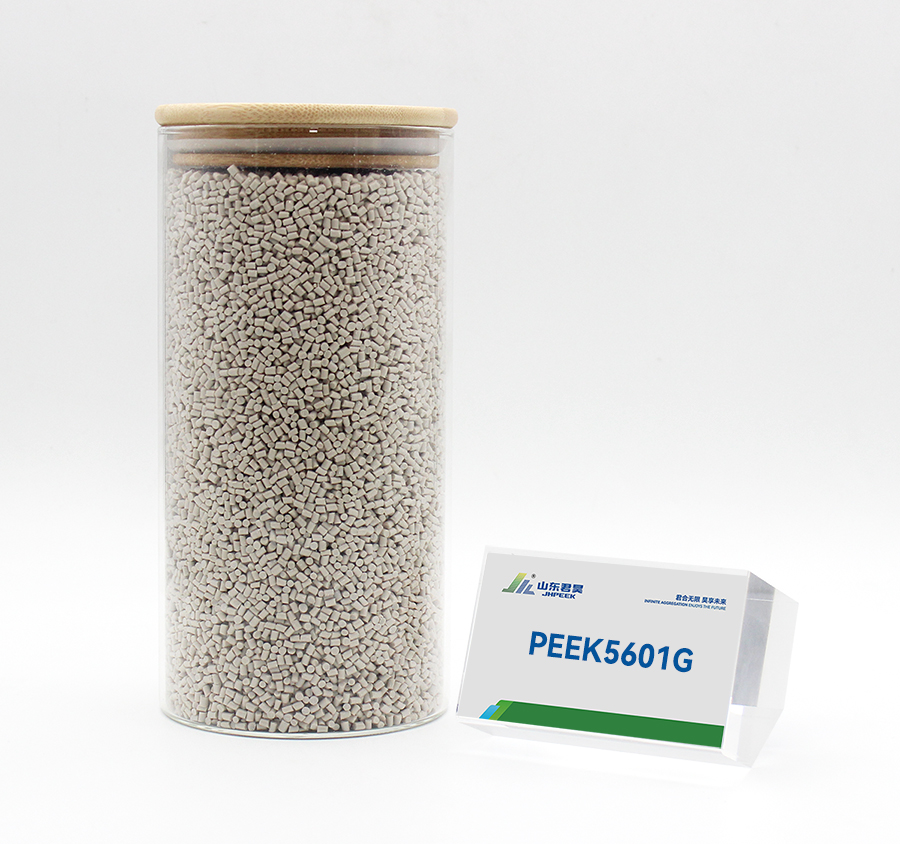

PEEK5601G particles

PEEK exhibits very superior comprehensive properties because of the large number of benzene ring structures in its molecules. PEEK (polyetheretherketone) resin is a high-performance special thermoplastic material and one of the important varieties of commercial polyaryletherketone resins. At present, polyetheretherketone is widely used in petroleum, food processing, automobile, aerospace and other fields for its excellent electrical properties, mechanical properties, high temperature resistance, corrosion resistance, etc. PEEk5601G—high-purity PEEK particles are a higher purity grade of particles, belonging to the grade of particles with medium fluidity, which can be used for injection molding, extrusion production and processing. Its purity is higher than PEEK5600G, and it is suitable for higher requirements such as analytical instrument parts.

Item	Test Standard or Instrument	Unit	PEEK5601G
			100%PEEK
Tensile strength(23℃)	ISO 527	MPa	93
Tensile modulus(23℃	ISO 527	GPa	4.0
Tensile elongation(23℃)	ISO 527	%	40
Bending strength(23℃)	ISO 178	MPa	163
Bending modulus(23℃)	ISO 178	GPa	3.8
Compressive strength(23℃)	ISO 604	MPa	124
Charpy tched impact strength( no gap)	ISO 179/U	KJ/m2	150（No break）
Lzod impact strength	ISO 180/A	KJ/m2	6

1、If you need other parameter, please contact us!

2、This performance index cannot be used as acceptance criteria.







Item	Test Standard or Instrument	Unit	PEEK5601G
			High purity PEEK
Melting point	DSC	℃	343
Distortion temperature	ISO 75-1/-2	℃	160
Continuous using temperature	UL 74685	℃	260
Coefficient of thermal expansion	ASTM D696	ppm K-1	46
Flammable level	UL 94	/	V-0
Thermal conductivity	ISO 22007	W/（m·K）	0.28

1、If you need other parameter, please contact us!

2、This performance index cannot be used as acceptance criteria.



Item	Test Standard or Instrument	Unit	PEEK5601G
			High purity PEEK
Dielectric strength	IEC 60243-1	KV/mm	25
Dielectric constant	IEC 60250	–	3.1
Surface Resistance		Oh	1013
Lossy medium	IEC 60251	–	0.004

1、If you need other parameter, please contact us!

2、This performance index cannot be used as acceptance criteria.



Item	Test Standard or Instrument	Unit	PEEK5601G
			High purity PEEK
Color	–		Natural
Density	ISO 1183	g/cm 3	1.3±0.01
Water Abs. (25℃.24Hrs)	ISO 62	%	0.04
Mould shrinking percentage	3mm,170℃, Flow direction	%	1.2
	Perpendicular to flow direction	%	1.5
Simeom Denis Poisson	ISO 527-2		0.4
Rockwell hardness	GB/T 3398.2	HRR	118
Friction coefficient	ASTM D3702	m	0.30
Melt flow index	ISO1133	g/10min	10

1、If you need other parameter, please contact us!

2、This performance index cannot be used as acceptance criteria.



• FDA approved
• Low noise
• High strength
• Self-lubrication
• Impact resistance
• High purity
• Wear resistance
• High temperature resistance
• Lightweight
• Corrosion resistance
• Hydrolysis resistance
• Good biocompatibility
