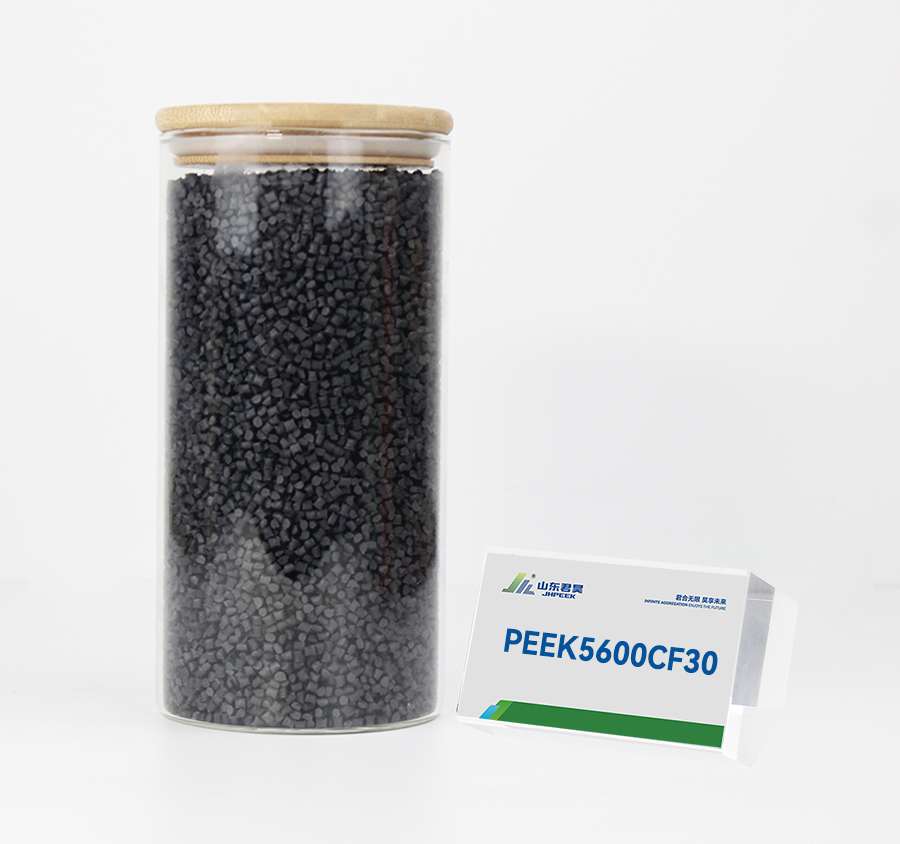

PEEK5600CF30 particles
  • PEEK5600CF30 particles

  • PEEK5600CF30 (black) is filled with 30% carbon fiber reinforcement. It has better mechanical properties (higher elastic modulus, mechanical strength and creep) and better wear resistance than PEEK5600GF30. In addition, carbon fiber reinforced plastic has 3.5 times the thermal conductivity of unreinforced PEEK plastic, and dissipates heat from the bearing surface faster. PEEK5600CF30 particles can be […]
  • Telephone:18136591771 / 0537-5135559
  • Mail: chinaPEEK@chinaPEEK.com
  • Contact Now
  • Product Details
    • PEEK5600CF30 (black) is filled with 30% carbon fiber reinforcement. It has better mechanical properties (higher elastic modulus, mechanical strength and creep) and better wear resistance than PEEK5600GF30. In addition, carbon fiber reinforced plastic has 3.5 times the thermal conductivity of unreinforced PEEK plastic, and dissipates heat from the bearing surface faster. PEEK5600CF30 particles can be used for production and processing by injection molding and extrusion. Relying on the previous experience accumulated in the PEEK industry, the company has entered the polymerization production of PEEK resin, providing more choices and stronger guarantees for domestic PEEK parts and profiles, creating advantageous conditions for the development of domestic PEEK. At the same time, through the research and development, production and feedback of customers on profiles and parts, it will also promote the improvement of Junhao’s raw material resin polymerization.

  • Mechanical properties
    • Item Test Standard or Instrument Unit PEEK5600CF30
      PEEK+30%Carbon fiber
      Tensile strength(23℃) ISO527-2/1B/50 MPa 250
      Tensile modulus(23℃ ISO527-2/1B/51 GPa 23.0
      Tensile elongation(23℃) ISO527-2/1B/50 % 1.6
      Bending strength(23℃) ISO 178 MPa 350
      Bending modulus(23℃) ISO 178 GPa 18
      Compressive strength(23℃) ISO 604 MPa 300
      Charpy tched impact strength( no gap) ISO 179/U KJ/m2 45
      Lzod impact strength ISO 180/A KJ/m2 9

      1、If you need other parameter, please contact us!

      2、This performance index cannot be used as acceptance criteria.

  • Thermal properties
    • Item Test Standard or Instrument Unit PEEK5600CF30
      PEEK+30%Carbon fiber
      Melting point DSC 343
      Distortion temperature ISO 75-1/-2 330
      Continuous using temperature UL 74685 260
      Coefficient of thermal expansion ASTM D696 ppm K-1 10
      Flammable level UL 94 / V-0
      Thermal conductivity ISO 22007 W/(m·K) 0.95

      1、If you need other parameter, please contact us!

      2、This performance index cannot be used as acceptance criteria.



  • Electrical properties
    • Item Test Standard or Instrument Unit PEEK5600CF30
      PEEK+30%Carbon fiber
      Dielectric strength IEC 60243-1 KV/mm /
      Dielectric constant IEC 60250 /
      Surface Resistance IEC 61340 Oh 105
      Lossy medium IEC 60251 Ohm cm /

      1、If you need other parameter, please contact us!

      2、This performance index cannot be used as acceptance criteria.



  • Other features
    • Item Test Standard or Instrument Unit PEEK5600CF30
      PEEK+30%Carbon fiber
      Color Black
      Density ISO 1183 g/cm 3 1.4
      Water Abs. (25℃.24Hrs) ISO 62 % 0.05
      Mould shrinking percentage Parallel to  flow direction % 0.3
      Perpendicular to flow direction % 0.8
      Simeom Denis Poisson ISO 527-2 0.35
      Rockwell hardness GB/T 3398.2 HRR 122
      Friction coefficient ASTM D3702 m 0.28-0.4
      Melt flow index ISO1133 g/10min 3

      1、If you need other parameter, please contact us!

      2、This performance index cannot be used as acceptance criteria.

  • Main performance
    • performance.webp
