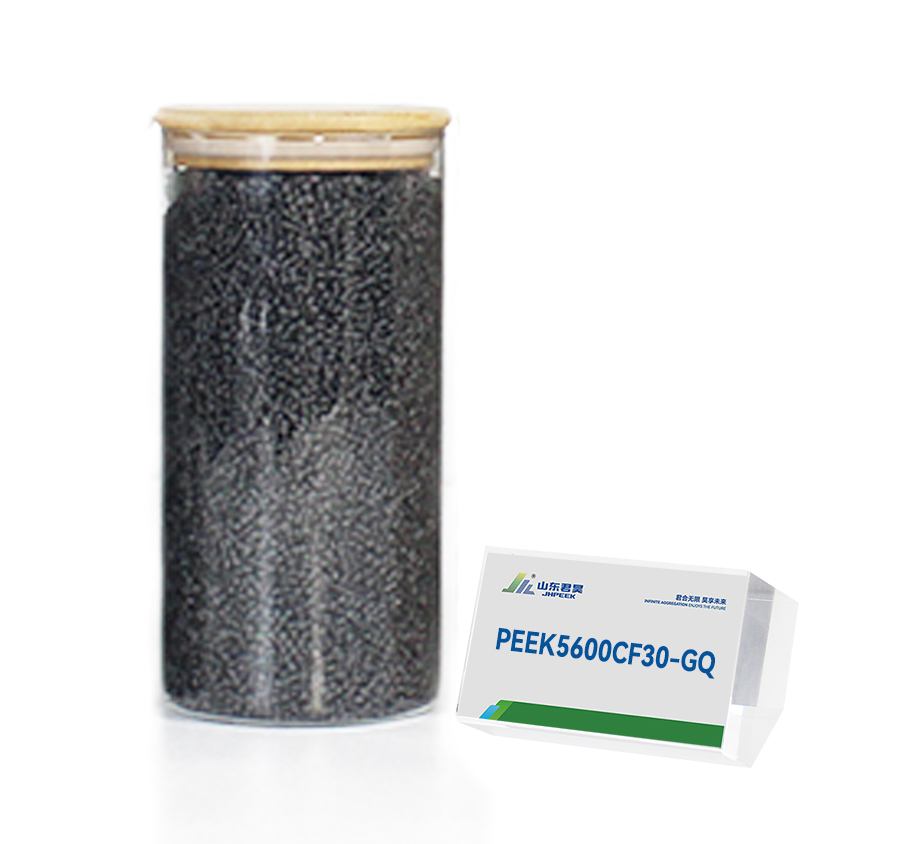

PEEK5600CF30-GQ particles

PEEK5600CF30-GQ (black) is filled with 30% high-strength carbon fiber reinforcement, which has better mechanical properties (higher modulus, mechanical strength) and better wear resistance than PEEK5600CF30. PEEK5600CF30-GQ particles can be used for production and processing by injection molding and extrusion. Relying on the previous experience accumulated in the PEEK industry, the company has entered the polymerization production of PEEK resin, providing more choices and stronger guarantees for domestic PEEK parts and profiles, and creating favorable conditions for the development of domestic PEEK. At the same time, through the research and development, production and feedback of customers on profiles and parts, it will also promote the improvement of Junhao's raw material resin polymerization.

Item	Test Standard or Instrument	Unit	PEEK5600CF30-GQ
			PEEK+30%Carbon fiber
Tensile strength(23℃)	ISO527-2/1B/50	MPa	260
Tensile modulus(23℃	ISO527-2/1B/51	GPa	24
Tensile elongation(23℃)	ISO527-2/1B/50	%	1.5
Bending strength(23℃)	ISO 178	MPa	390
Bending modulus(23℃)	ISO 178	GPa	16
Charpy tched impact strength( no gap)	ISO 179/U	KJ/m2	45
Lzod impact strength	ISO 180/A	KJ/m2	9

1、If you need other parameter, please contact us!

2、This performance index cannot be used as acceptance criteria.



Item	Test Standard or Instrument	Unit	PEEK5600CF30-GQ
			PEEK+30%Carbon fiber
Melting point	ISO11357	℃	343
Distortion temperature	ISO 75a-f	℃	335
Continuous using temperature	UL 746B	℃	260
Coefficient of thermal expansion	ASTM D696	ppm K-1	5
Flammable level	UL 94	/	/
Thermal conductivity	ISO /CD22007-4	W/（m·K）	0.95

1、If you need other parameter, please contact us!

2、This performance index cannot be used as acceptance criteria.



Item	Test Standard or Instrument	Unit	PEEK5600CF30-GQ
			PEEK+30%Carbon fiber
Dielectric strength	IEC 60243-1	KV/mm	–
Dielectric constant	IEC 62631	–	–
Surface resistance Surface Resistance	GB/T 31838.3	Oh	–
Volume resistivity Volume Resistivity	IEC 60093	Ohm cm	105

1、If you need other parameter, please contact us!

2、This performance index cannot be used as acceptance criteria.

Item	Test Standard or Instrument	Unit	PEEK5600CF30-GQ
			PEEK+30%Carbon fiber
Color	–		black Black
Density	ISO 1183	g/cm 3	1.4
Water Abs. (25℃.24Hrs)	ISO 62-1	%	0.04
Mould shrinking percentage	Parallel to flow direction Parallel to  flow direction	%	0.1
	Perpendicular to flow direction Perpendicular to flow direction	%	0.5
Simeom Denis Poisson	ISO 527-2		0.35
Rockwell hardness HRE Rockwell hardness	ISO 2039.2		80
Friction coefficient	ASTM D3702	100N-120rpm	0.15-0.25
Melt flow index	ISO1133	g/10min	1.5

1、If you need other parameter, please contact us!

2、This performance index cannot be used as acceptance criteria.



• FDA approved
• Low noise
• High strength
• Self-lubrication
• Impact resistance
• High purity
• Wear resistance
• High temperature resistance
• Lightweight
• Corrosion resistance
• Hydrolysis resistance
• Good biocompatibility
