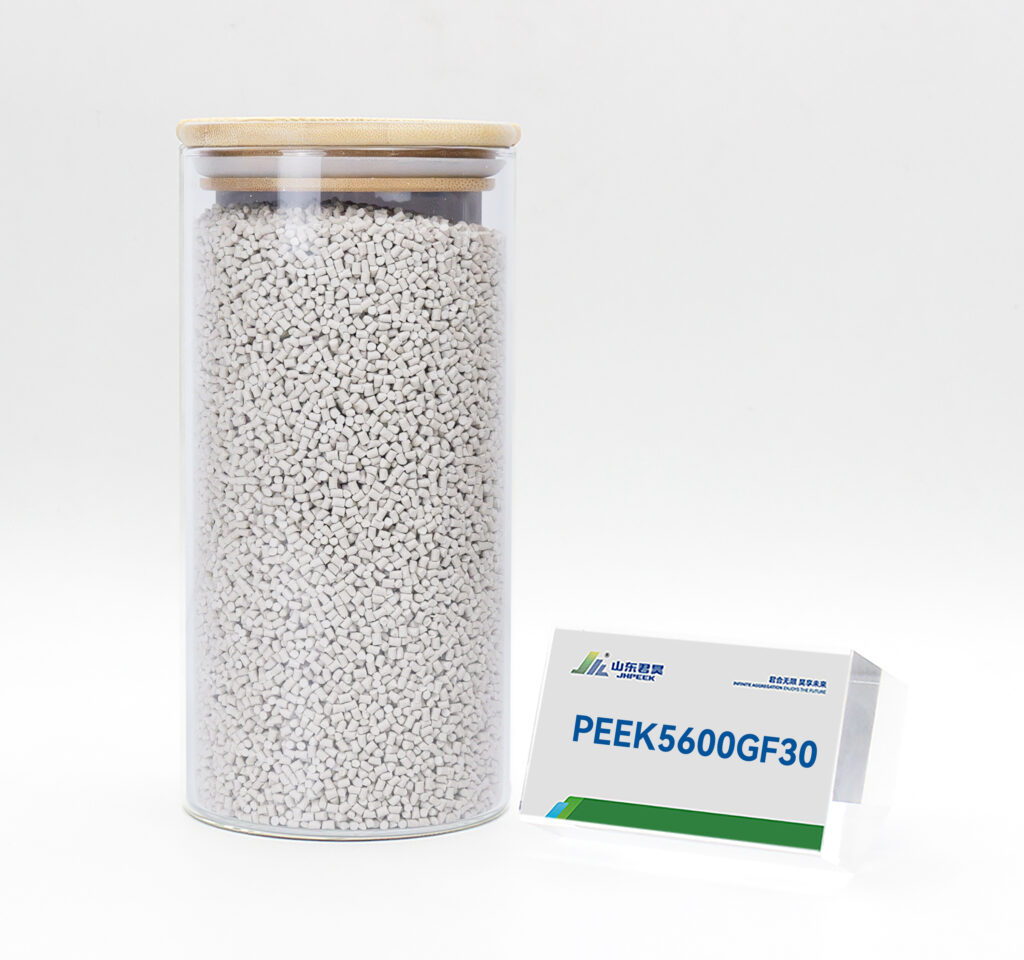

PEEK5600GF30 particles
  • PEEK5600GF30 particles

  • PEEK5600GF30 (brown gray) is a reinforced plastic filled with 30% glass fiber. It has better rigidity and creep resistance than PEEK, as well as better dimensional stability, and is ideal for manufacturing structural parts. It can withstand fixed loads for a long time at high temperatures. If PEEK5600GF30 is used as a sliding part, its […]
  • Telephone:18136591771 / 0537-5135559
  • Mail: chinaPEEK@chinaPEEK.com
  • Contact Now
  • Product Details
    • PEEK5600GF30 (brown gray) is a reinforced plastic filled with 30% glass fiber. It has better rigidity and creep resistance than PEEK, as well as better dimensional stability, and is ideal for manufacturing structural parts. It can withstand fixed loads for a long time at high temperatures. If PEEK5600GF30 is used as a sliding part, its adaptability should be carefully checked because glass fiber scratches the mating surface. 30% glass fiber + 70% PEEK, glass fiber plays a reinforcing role in the component, and its own non-conductive characteristics make it suitable for use in materials with high insulation requirements and strong rigidity. PEEK5600GF30 can be produced and processed by injection molding and extrusion.

  • Mechanical properties
    • Item Test Standard or Instrument Unit PEEK5600GF30
      PEEK+70%Glass fiber
      Tensile strength(23℃) ISO527-2/1B/50 MPa 175
      Tensile modulus(23℃ ISO527-2/1B/51 GPa 12.5
      Tensile elongation(23℃) ISO527-2/1B/50 % 2.8
      Bending strength(23℃) ISO 178 MPa 268
      Bending modulus(23℃) ISO 178 GPa 11.5
      Compressive strength(23℃) ISO 604 MPa 247
      Charpy tched impact strength( no gap) ISO 179/U KJ/m2 55
      Lzod impact strength ISO 180/A KJ/m2 10

      1、If you need other parameter, please contact us!

      2、This performance index cannot be used as acceptance criteria.







  • Thermal properties
    • 项目
      (Item)
      Test Standard or Instrument 单位
      (Unit)
      PEEK5600GF30
      PEEK+30%Glass fiber
      Melting point DSC 343
      Distortion temperature ISO 75-1/-2 330
      Continuous using temperature UL 74685 260
      Coefficient of thermal expansion ASTM D696 ppm K -1 18
      Flammable level UL 94 / V-0
      Thermal conductivity ISO 22007 W/(m·K) 0.30

      1、If you need other parameter, please contact us!

      2、This performance index cannot be used as acceptance criteria.



  • Electrical properties
    • Item Test Standard or Instrument Unit PEEK5600GF30
      PEEK+30%Glass fiber
      Dielectric strength IEC 60243-1 KV/mm 17
      Dielectric constant IEC 60250 3.3
      Surface resistance IEC 61340 Ω 1012
      Lossy medium IEC 60251 0.005

      1、If you need other parameter, please contact us!

      2、This performance index cannot be used as acceptance criteria.



  • Other features
    • Item Test Standard or Instrument Unit PEEK5600GF30
      PEEK+30%Glass fiber
      Color 本色、灰黄色

      Natural

      Density ISO 1183 g/cm3 1.5
      Water Abs. (25℃.24Hrs) ISO 62 % 0.05
      Mould shrinking percentage 3mm,170℃, Flow direction % 0.3
      Perpendicular to flow direction % 0.8
      Simeom Denis Poisson ISO 527-2 0.35
      Rockwell hardness GB/T 3398.2 HRR 120
      Friction coefficient ASTM D3702 μ 0.35-0.4
      Melt flow index ISO1133 g/10min 3

      1、If you need other parameter, please contact us!

      2、This performance index cannot be used as acceptance criteria.



  • Main performance
    • PEEK性能优势
