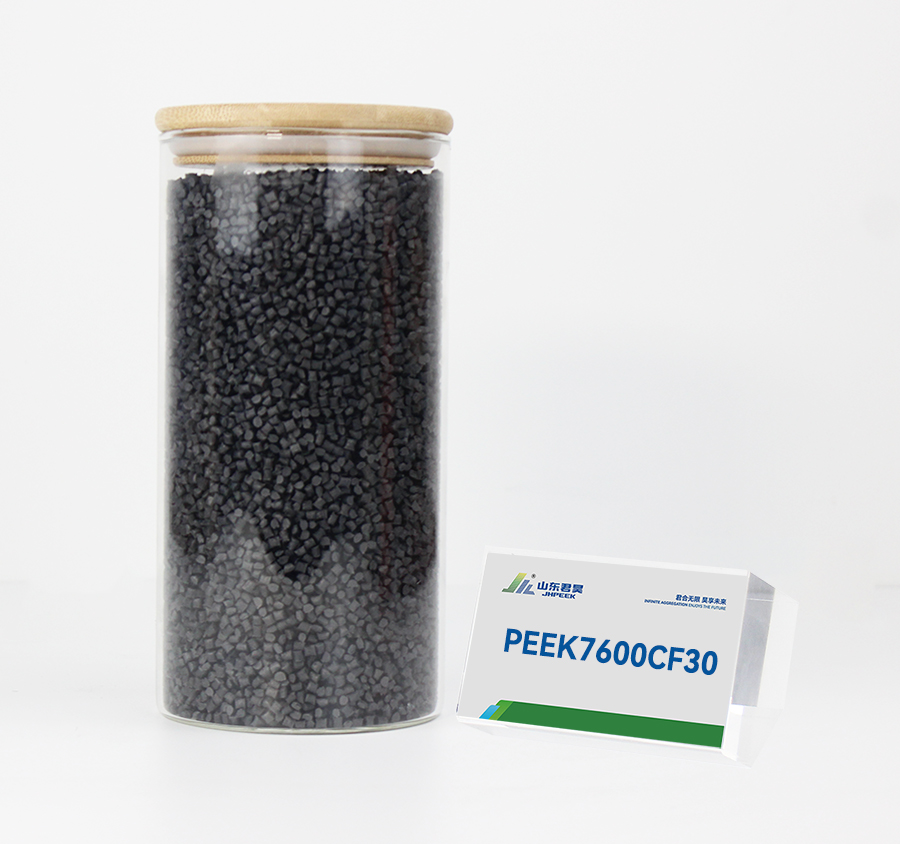

30% carbon fiber + 70% PEEK. The addition of carbon fiber can greatly improve the mechanical properties of the material, and the conductive properties of carbon fiber itself also make the material conductive. The addition of carbon fiber can also improve the wear resistance of the material! PEEK7600CF30 can be used for production and processing by injection molding and extrusion.
Item | Test Standard or Instrument | Unit | PEEK7600CF30 |
PEEK+30%Carbon fiber | |||
Tensile strength(23℃) | ISO527-2/1B/50 | MPa | 250 |
Tensile modulus(23℃ | ISO527-2/1B/51 | GPa | 23.0 |
Tensile elongation(23℃) | ISO527-2/1B/50 | % | 1.7 |
Bending strength(23℃) | ISO 178 | MPa | 350 |
Bending modulus(23℃) | ISO 178 | GPa | 18 |
Compressive strength(23℃) | ISO 604 | MPa | 300 |
Charpy tched impact strength( no gap) | ISO 179/U | KJ/m2 | 48 |
Lzod impact strength | ISO 180/A | KJ/m2 | 9 |
1、If you need other parameter, please contact us!
2、This performance index cannot be used as acceptance criteria.
Item | Test Standard or Instrument | Unit | PEEK7600CF30 |
PEEK+30%Carbon fiber | |||
Melting point | DSC | ℃ | 343 |
Distortion temperature | ISO 75-1/-2 | ℃ | 330 |
Continuous using temperature | UL 74685 | ℃ | 260 |
Coefficient of thermal expansion | ASTM D696 | ppm K-1 | 10 |
Flammable level | UL 94 | / | V-0 |
Thermal conductivity | ISO 22007 | W/(m·K) | 0.95 |
1、If you need other parameter, please contact us!
2、This performance index cannot be used as acceptance criteria.
Item | Test Standard or Instrument | Unit | PEEK7600CF30 |
PEEK+30%Carbon fiber | |||
Dielectric strength | IEC 60243-1 | KV/mm | / |
Dielectric constant | IEC 60250 | – | / |
Surface Resistance | IEC 61340 | Oh | 105 |
Lossy medium | IEC 60251 | – | / |
1、If you need other parameter, please contact us!
2、This performance index cannot be used as acceptance criteria.
Item | Test Standard or Instrument | Unit | PEEK7600CF30 |
PEEK+30%Carbon fiber | |||
Color | – | Black | |
Density | ISO 1183 | g/cm 3 | 1.4 |
Water Abs. (25℃.24Hrs) | ISO 62 | % | 0.05 |
Mould shrinking percentage | 3mm,170℃, Flow direction | % | 0.3 |
Perpendicular to flow direction | % | 0.8 | |
Simeom Denis Poisson | ISO 527-2 | 0.35 | |
Rockwell hardness | GB/T 3398.2 | HRR | 122 |
Friction coefficient | ASTM D3702 | m | 0.28-0.4 |
Melt flow index | ISO1133 | g/10min | 2 |
1、If you need other parameter, please contact us!
2、This performance index cannot be used as acceptance criteria.
