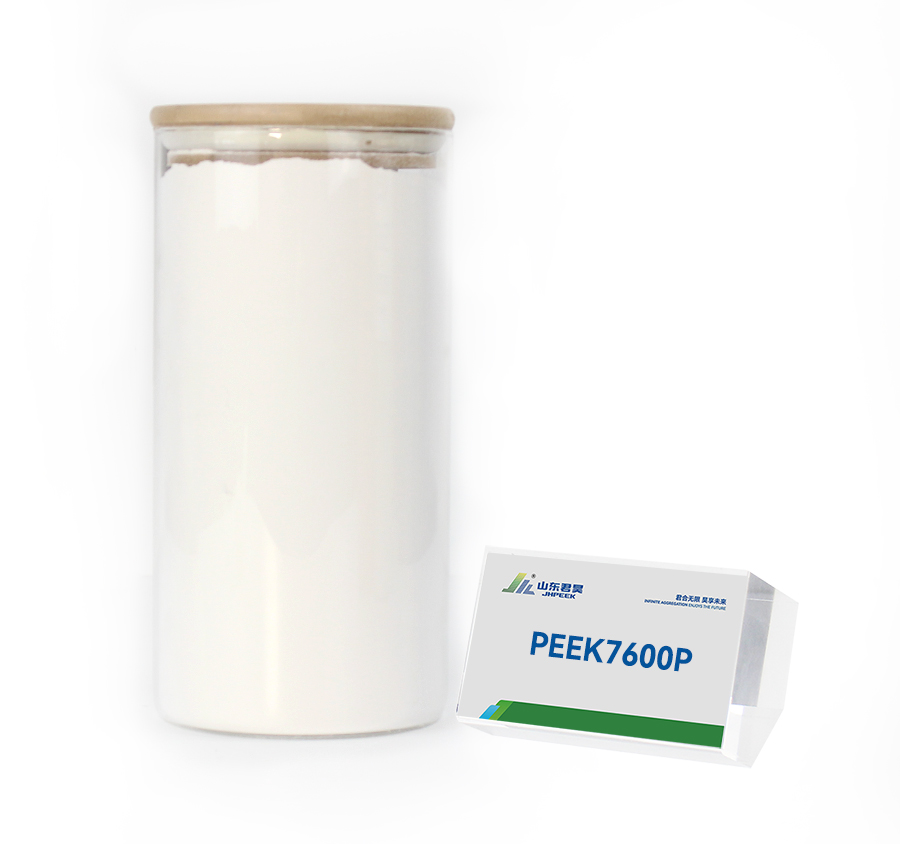

As an advanced engineering plastic, PEEK has good machinability, flame retardancy, non-toxicity, wear resistance, corrosion resistance and other characteristics. It plays an important role in weight reduction, effectively extending the service life of components, optimizing component utilization, etc., and its downstream application promotion is accelerating. PEEK powder is ground from the coarse powder after PEEK polymerization. According to different grinding processes, powders of different sizes from 200 mesh to 800 mesh can be ground. PEEK7600P is a powder with a low melt flow rate, suitable for processing and production by molding, spraying, etc. PEEK7600P powder is suitable for molding process , and the low fluidity characteristics make it difficult for the material to overflow during the melting process.
Powder size | Test Standard or Instrument | Unit | PEEK7600P |
Pure resin (100%PEEK) | |||
200 mesh | ISO 13320 | μm | 75 |
300 mesh | ISO 13320 | μm | 50 |
500 mesh | ISO 13320 | μm | 25 |
800 mesh | ISO 13320 | μm | twenty two |
800 mesh | ISO 13320 | μm | 18 |
1000 mesh | ISO 13320 | μm | 13 |
1340 mesh | ISO 13320 | μm | 10 |
Note: 1. This performance parameter cannot be used as a material acceptance standard.
Item | Test Standard or Instrument | Unit | PEEK7600P |
100%PEEK | |||
Tensile strength(23℃) | ISO527-2/1B/50 | MPa | 94 |
Tensile modulus(23℃ | ISO527-2/1B/51 | GPa | 4.0 |
Tensile elongation (23℃) | ISO527-2/1B/50 | % | 40 |
Bending strength(23℃) | ISO 178 | MPa | 163 |
Bending modulus(23℃) | ISO 178 | GPa | 4.2 |
Compressive strength(23℃) | ISO 604 | MPa | 125 |
Charpy tched impact strength(no gap) | ISO 179/U | KJ/m2 | 160 (No break) |
Lzod impact strength | ISO 180/A | KJ/m2 | 7 |
Note: 1. This performance parameter cannot be used as a material acceptance standard. 2. This performance parameter is obtained for molded sheets.
Item | Test Standard or Instrument | Unit | PEEK7600P |
100%PEEK | |||
Melting point | DSC | ℃ | 343 |
Distortion temperature | ISO 75-1/-2 | ℃ | 157 |
Continuous using temperature | UL 74685 | ℃ | 260 |
Coefficient of thermal expansion | ASTM D696 | ppm K -1 | 46 |
Flammable level | UL 94 | / | V-0 |
Thermal conductivity | ISO 22007 | W/(m·K) | 0.28 |
Note: 1. This performance parameter cannot be used as a material acceptance standard. 2. This performance parameter is obtained for molded sheets.
Item | Test Standard or Instrument | Unit | PEEK7600P |
100%PEEK | |||
Dielectric strength | IEC 60243-1 | KV/mm | twenty four |
Dielectric constant | IEC 60250 | – | 3.2 |
Surface resistance | IEC 61340 | Ω | 10 13 |
Lossy medium | IEC 60251 | – | 0.004 |
Note: 1. This performance parameter cannot be used as a material acceptance standard. 2. This performance parameter is obtained for molded sheets.
Item | Test Standard or Instrument | Unit | PEEK7600P |
100%PEEK | |||
Color | – | Natural | |
Density | ISO 1183 | g/cm3 | 1.30 |
Water Abs. (25℃.24Hrs) | ISO 62 | % | 0.05 |
Mould shrinking percentage | 3mm,170℃,Flow direction | % | 1.0 |
Perpendicular to flow direction | % | 1.3 | |
Simeom Denis Poisson | ISO 527-2 | 0.4 | |
Rockwell hardness | GB/T 3398.2 | HRR | 118 |
Friction coefficient | ASTM D3702 | μ | 0.30-0.35 |
Melt flow index | ISO 1133 | g/10min | 5 |
Note: 1. This performance parameter cannot be used as a material acceptance standard. 2. This performance parameter is obtained for molded sheets.
